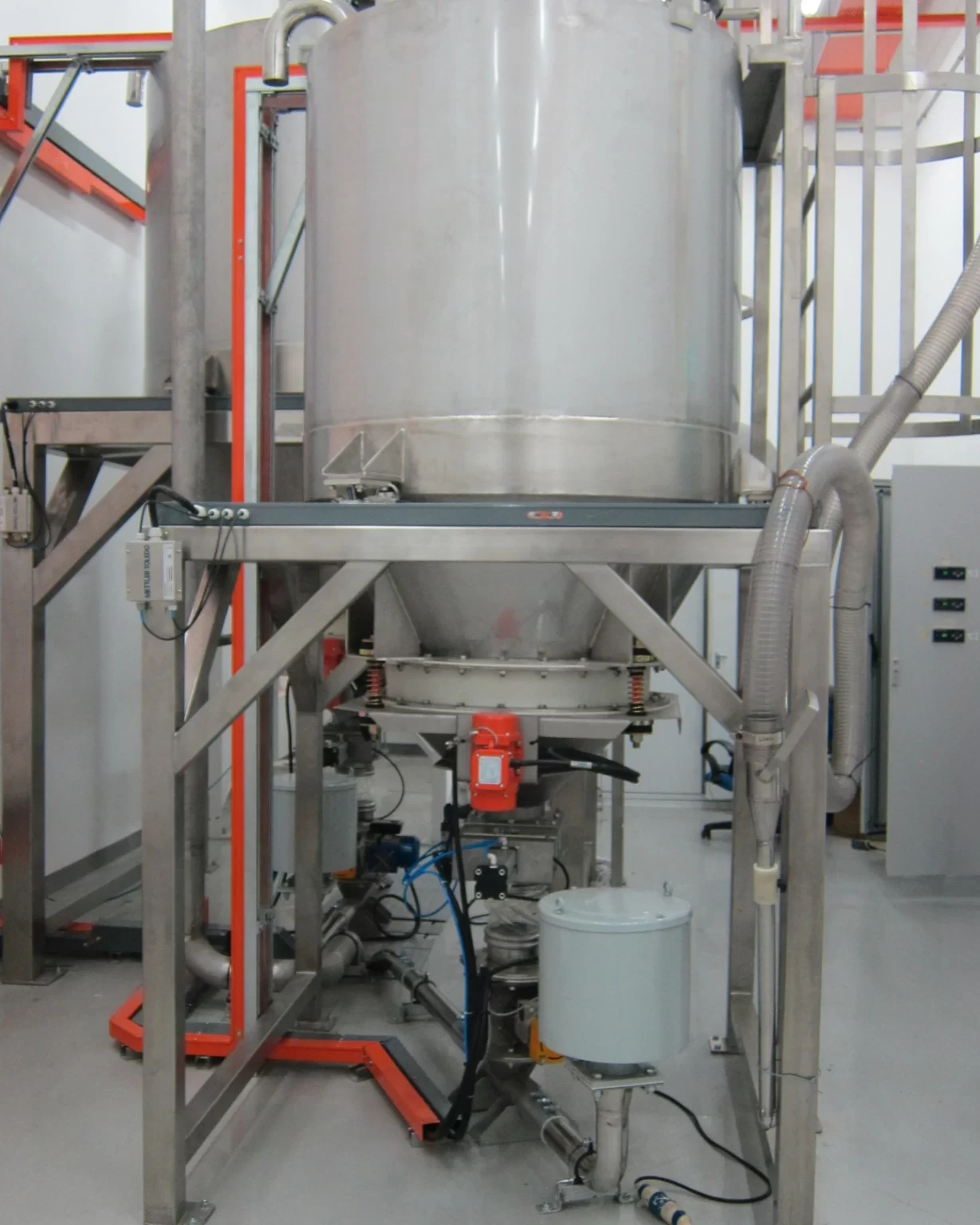

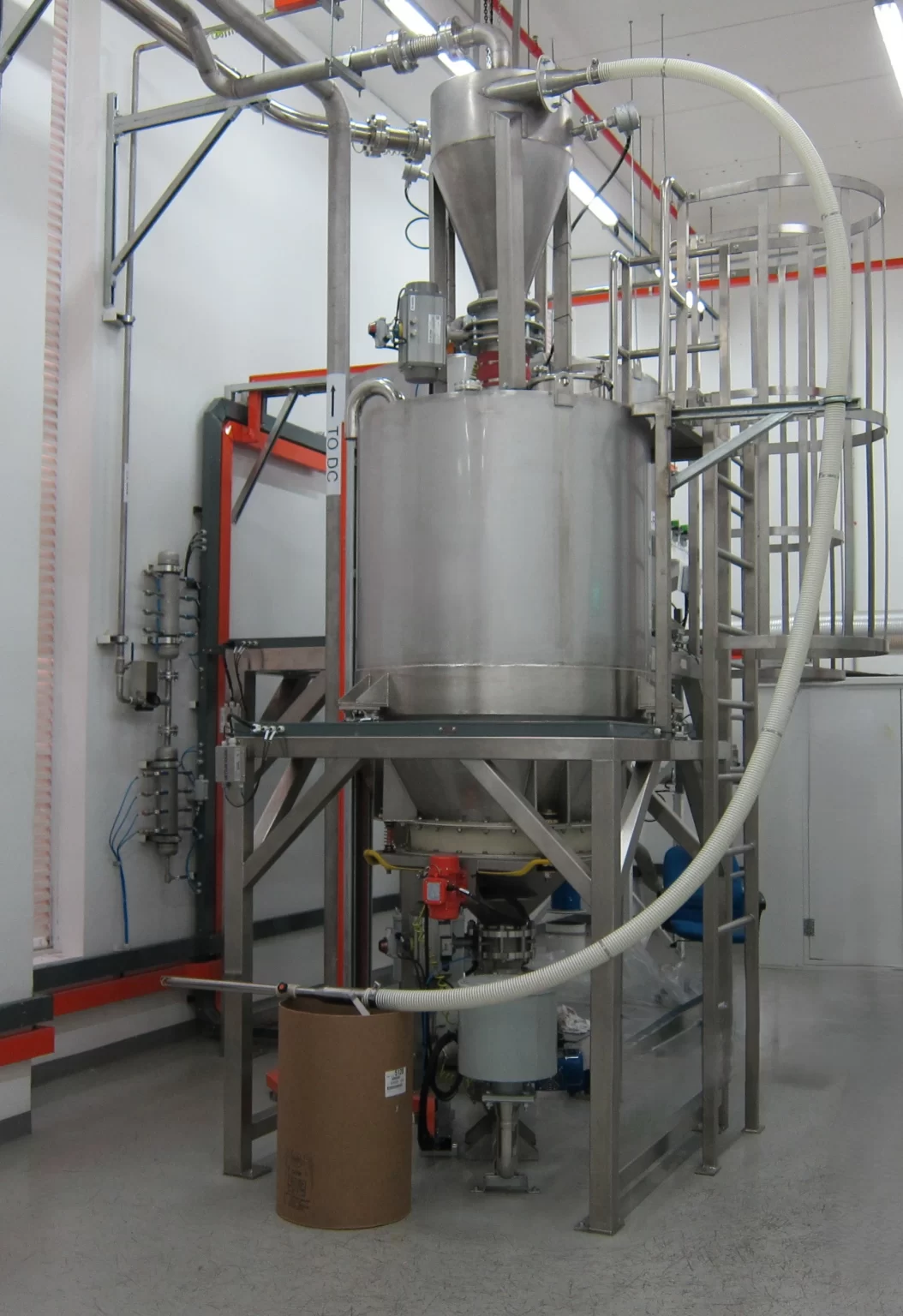

Plastic Resin Batching & Conveying System
Material Handled : Plastic Resin (Pellets)
System Conveying Capacity : 3,000kg/hr
Conveying Distance : 30+m
No. of Bends : 3
Material Handled : Plastic Resin (Soft Pellets)
System Conveying Capacity : 1,000kg/hr
Conveying Distance : 15m
No. of Bends : 3
Material Handled : Plastic Resin (Mixed)
System Conveying Capacity : 1,000kg/hr
Conveying Distance : 20+m
No. of Bends : 5
Given the short conveying distance and low capacity requirement, dilute phase vacuum conveying presents a cost-effective and efficient solution for handling plastic resins. Despite the client’s stringent demands for weighing accuracy, we successfully achieved a tolerance of less than 1%.
Commissioned in August 2016
